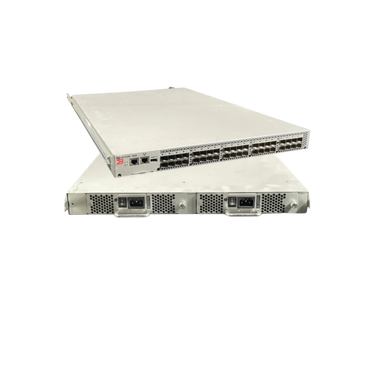

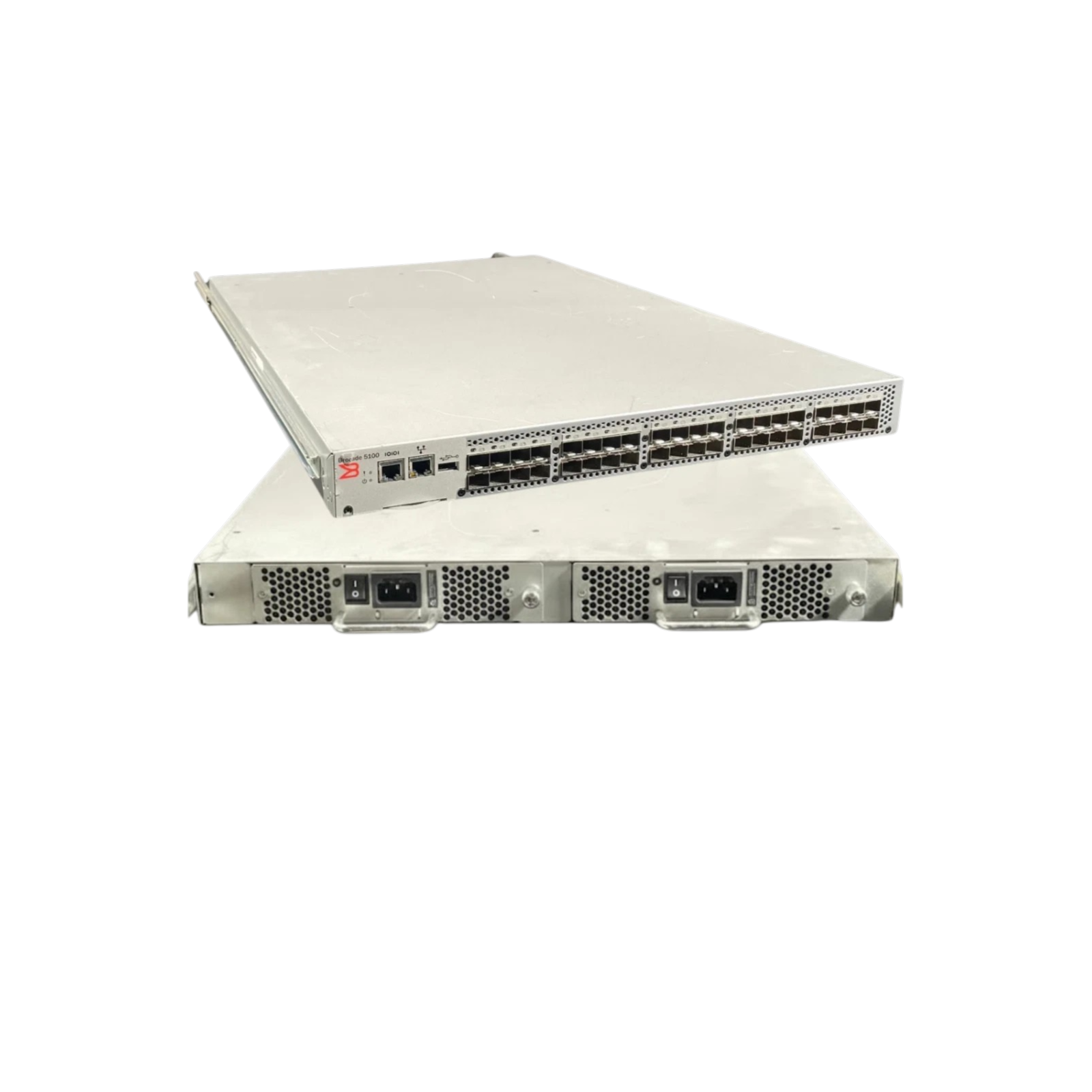

Brocade BR-5100 Switch - Refurbished
$179.90
/
Description
The Brocade BR-5100 is a Fibre Channel SAN switch, purpose-built for storage networking environments, not standard Ethernet LAN networks.
It delivers 8Gb Fibre Channel performance and supports 24, 32, or 40 ports, with a pay-as-you-grow licensing model that allows gradual port activation as network demand increases.
Designed for midrange enterprise SAN deployments, the switch provides high-speed, low-latency connectivity between servers and storage systems such as SAN arrays and backup infrastructure.
With an aggregate bandwidth of up to 320 Gbps (40 ports × 8Gb), it ensures reliable data transfer for mission-critical applications.
The BR-5100 also features enterprise-class availability, including hot-swappable redundant power supplies and fans, ensuring continuous operation in critical environments.
It operates within Fibre Channel fabrics, supporting large-scale SAN architectures and advanced zoning for secure storage segmentation.
As a refurbished unit, it is commonly used in legacy storage environments or as a cost-effective expansion switch in existing SAN infrastructures.
✨ Key Features
- Fibre Channel switch (NOT Ethernet)
- Up to 40 x 8Gb FC ports (SFP-based)
- Scalable port licensing (24 → 32 → 40 ports)
- Aggregate bandwidth up to 320 Gbps
- Supports 1 / 2 / 4 / 8 Gbps auto-sensing speeds
- Hot-swappable PSU and fans (high availability)
- Designed for SAN (Storage Area Network) environments
- Supports zoning, fabric architecture, and storage segmentation
- Energy-efficient (~2.5W per port class)
- Rack-mountable 1U form factor
- Refurbished unit offering cost-effective SAN expansion
Specifications
| Form Factor | Rack Mountable |
| Management | Managed |
| OSI Layers | Layer2,Layer3 |
| Port Count | 24 |
| Port Speed | 100GbE,40GbE,10GbE |
| Power over Ethernet | Non-PoE |
| Redundant Power Supply | Yes |
| Stacking Support | Stackable |
| Uplink Module Support | Modular |
